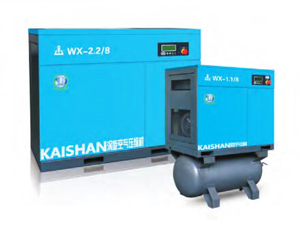

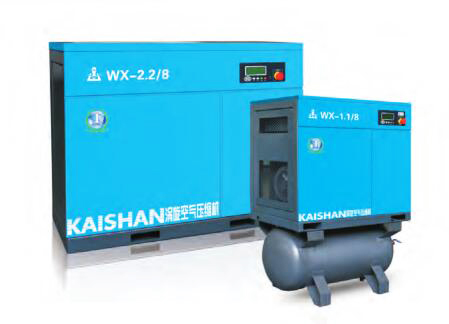

Scroll Air Compressor
Home » Products » Air Compressor » Scroll Air Compressor

Advantages of Scroll Air Compressor

Low noise: Exhaust continuous and stable, no moving parts of the percussion and air blasting sound.

Low energy consumption: Volume rate can be up to 98%, no friction loss, high mechanical efficiency, no suction exhaust valve resistance loss.

Maintenance costs low: Host parts less, no wearing parts, only the normal Paul buckwheat.

Reliable and durable: Simple structure, less moving parts, bearing force is small, smooth operation, static and dynamic disk does not touch wear.

Technological Advantages of Scroll Scroll Air Compressor

Scroll compressor will gradually replace the small Capacity piston compressor, and will become the mainstream. Piston compressor wearing parts, noise, high maintenance costs, short life and other shortcomings is recognized fact. Screw compressor processing accuracy, processing costs, in the small row cocoon range without price advantage. Scroll compressor features low noise, smooth operation, high reliability, low maintenance costs, energy saving and environmental protection.

Energy saving

Adopt asymmetric lines, exhaust continuous and stable, high volumetric efficiency, Waist-type exhaust port, to avoid over-compression or under-compression of energy loss. The motor is directly connected with the main machine to reduce the belt transmission loss. Mute Balance block streamlined design and interior design of the silencer. Three-dimensional balance of moving parts and secondary pumping technology to minimize the center of mechanical vibration. Rack split structure. Secondary bearing centering technology

Reliable

The number of host parts is only 1/10 of the piston type, high reliability. Static and dynamic disk does not touch, never wear. Low-pressure structure and frame structure to optimize the bearing force

Economic

No wearing parts, eliminating maintenance costs - Only need to regularly replace the three filters and lubricants, Better than the piston machine, an energy efficiency standards, energy saving,

Specifications of Industrial Scroll Air Compressor

Rate frequency

50Hz

60Hz

Model

WX-0.66/8

WX-0.8/10

WX-1.1/8

WX-1,6/10

WX-

2.2/8

WX-0.7/8

WX-0.9

/10

WX-1.8/10

Capacity (m3/min)

0.66

0.8

1,1

1.65

2,2

0.7

0.90

1.80

Working pressure (Mpa>)

0.8

1.0

0.8

1.0

0,8

0.8

1.0

1.0

Air supply temperature(XT)

Environment temperature+50

Environment temperature+50

Noise dB(A)

(57、62) ±3

(57-62) ±3

For its oil(ppm)

≤3, Slightly oil

≤3, Slightly oil

Electric motor

Rotating speed (r/min}

2900

3450

Power <Kw/HP)

4.5/6

5.S/7.5

7.5/10

11/15

15/20

S.6/7.5

7.5)10

Cut

Starting model

Direct start, direct connection

Direct start, direct connection

HZ/PHASE

380/50/30 220/50/30

380/60/30 220/60/30

L*H*W (mm)

910*

430

*1014

900*560

*800

1130*695

*915

900*

480

*1010

900*

480

*1070

900*

480*

690

900*560*

800

1130*

695* 915

Weight (kg)

185

238

428

185

203

150

238

428

Standard

Tank 75L

Without tank

Tank 75L

Tank 100L

Without tank
