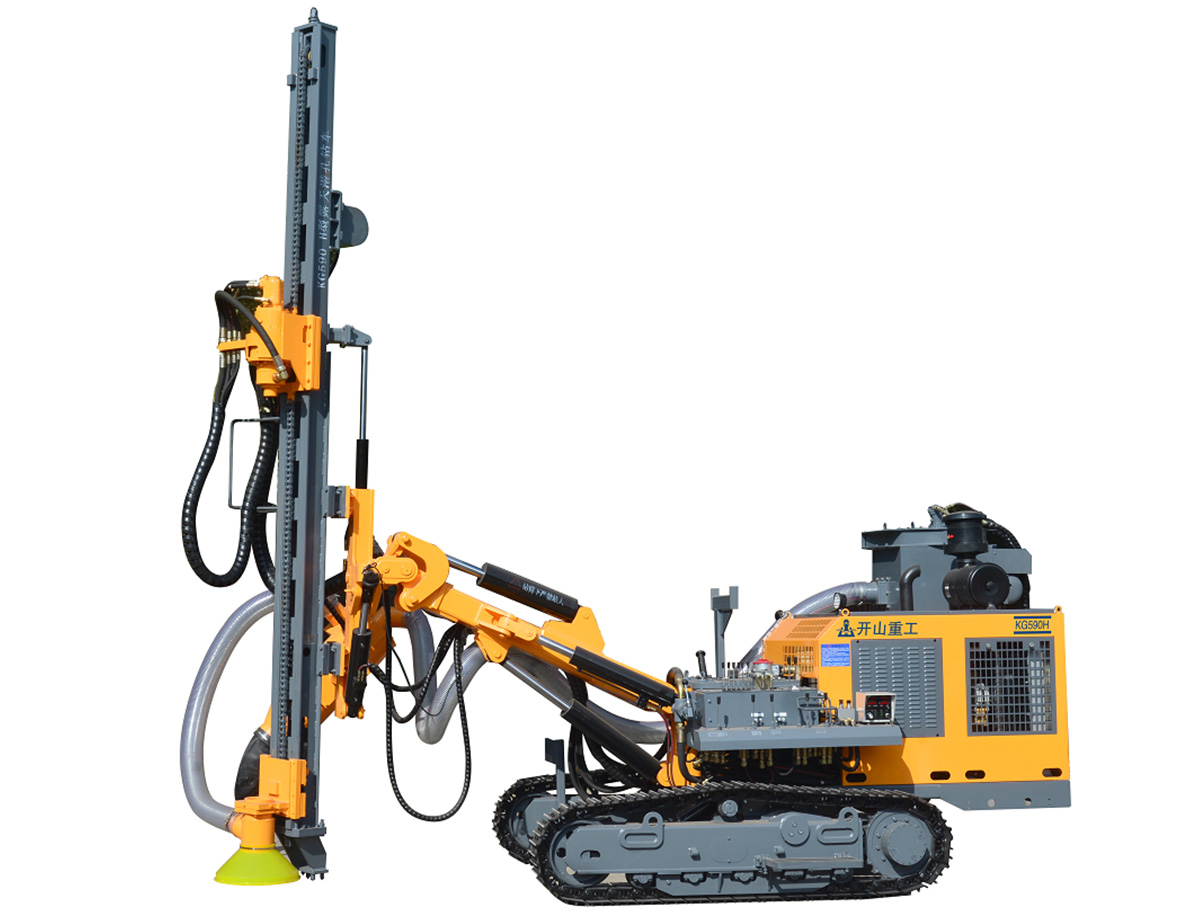

KG590/KG590H Surface DTH Drilling Rig

Home » Products » Drill Rigs and Rock Drills »KG590/KG590H Surface DTH Drilling Rig

Get Operation Manual

KG590/KG590H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG935S platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG520H is assembled with dust collector,it is suitable for environmental standards.

operation system

rotary system

multi boom

travel system

Technical Parameters of KG590/KG590H Surface DTH Drilling Rig

Model	KG590	KG590H
Weight	7000kg	7200kg
Dimension	690023002700mm	710023002700mm
Drilling hardness	f=6-20
Drilling diameter	Φ105-152mm
Economic drilling depth	25m
Rotation speed	100r/min
Rotary torque	5000N·m
Lifting force	25KN
Propulsion mode	Hydraulic Motor - Chain
Feed length	4150mm
Travel speed	0-4Km/h
Climbing capacity	≤30°
Ground clearance	440mm
Feed pitch angle	down 135° up50°
Feed swing angle	left 50° right 50°
boom pitch angle	down 50° up 25°
boom swing angle	left 45° right 45°
truck oscillation	±10°
Feed extension	900mm
Diesel engine	Yuchai YC4DK100-T304 (73KW/2200r/min)
Drill rod	76*3m
Toe-hole drilling	Min.350mm,Max.3500mm
