Air Pick

Home » Products » Road Machinery » Air Pick

Get Operation Manual

Kaishan air picks are extensively applied for coal mining, open ditch, mining soft rocks, etc. in the crushing of old roads and original concret foundations in municipal construction and in the coal mine industry.

Technical Parameters of Air Pick

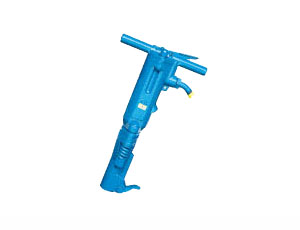

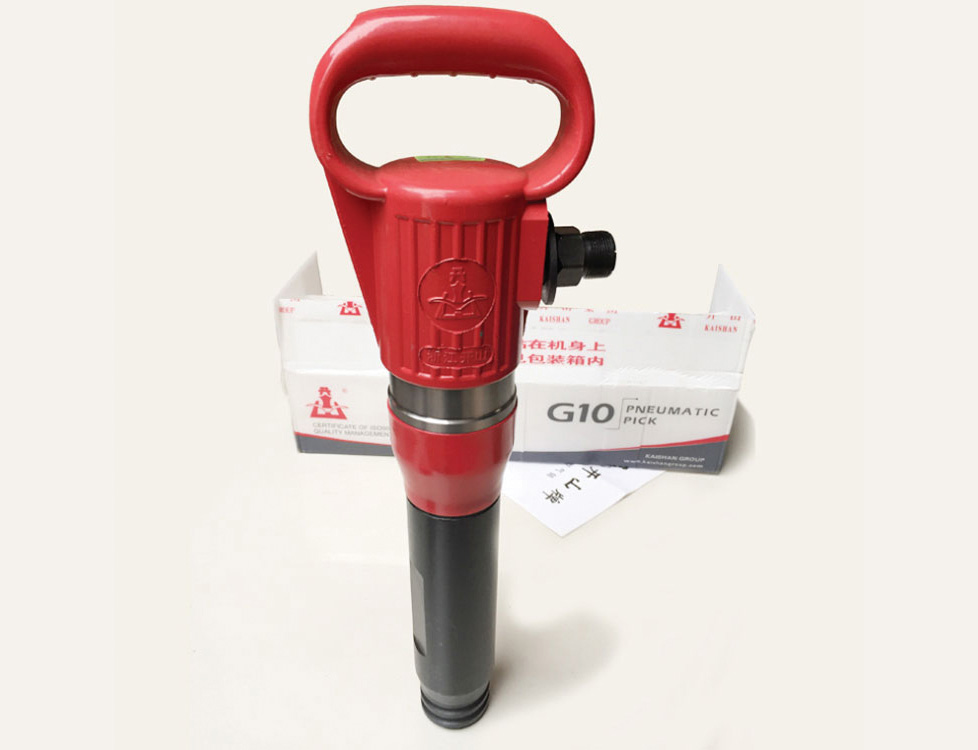

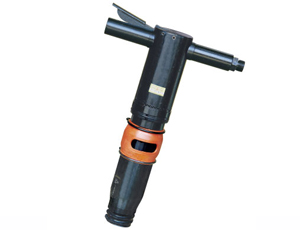

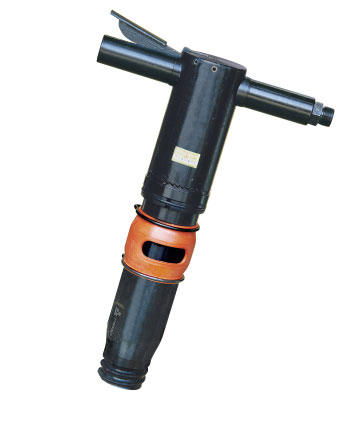

Model		G10	G11	G20	G40
Total length	mm	570	570	540	686
Weight	kg	10	10	20	39
Working Working pressure	Mpa	0.63	0.63	0.63	0.63
Impact frequency	Hz	≥16	≥16	≥16	≥17
Air consumption	l/s	≤26	≤26	≤23	≤64
Impact energy	J	≥43	≥43	≥50	≥90
Cylinder diameter	mm	38	38	40	63.5
Air pipe inner diameter	mm	16	16	19	19
Packing dimensions	mm	540×180×120	540×180×120	545×375×125	787×450×250
