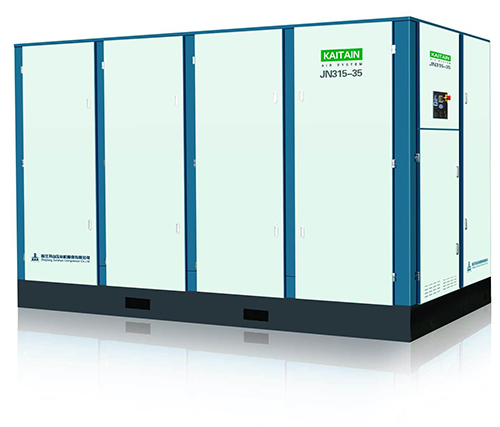

JN High Pressure Screw Air Compressor
Home » Products » Air Compressor » JN High Pressure Screw Air Compressor

This type air compressor is designed according to 40 bar maximum pressure.

Rotor profile: SKY 2G Patented rotor profile with highest efficiency.

Two-stage compression: flexible design is corresponding to the lift valve, which has obtained global patent for invention.

It is with heavy duty design, SKF bearing, connected to the drive directly without gear noise.

The air compressor has optimum structure and maximum reliability.

Technical Parameters of JN High Pressure Screw Air Compressor

Model

Motor power

kW

Capacity

M3/min

Working pressure

bar

Dimensions

mm

JN200-25

200

20

25

3760×2260×2260

JN200-35

200

16

35

3760×2260×2260

JN250-25

250

26

25

3760×2260×2260

JN250-35

250

21

35

3760×2260×2260

JN315-25

315

31

25

3760×2260×2260

JN315-35

315

26

35

3760×2260×2260

JN400-25

400

39

25

3760×2260×2260

JN400-35

400

32

35

3760×2260×2260
