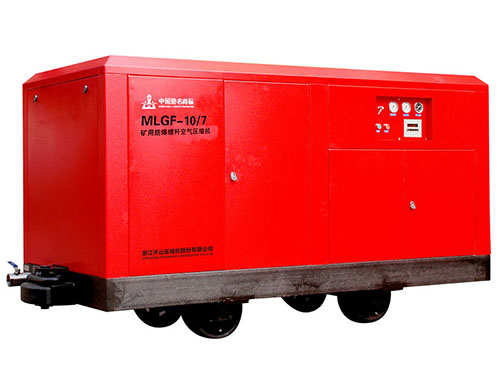

KAISHAN ML Explosion-proof Screw Air Compressor

Home » Products » Air Compressor » KAISHAN ML Explosion-proof Screw Air Compressor

Get Operation Manual

ML series anti-explosion mining screw air compressor adopts efficient engine and has many advantages, including advanced structure, high precision, smooth running, low noise, long service life, low maintenance cost, low fuel consumption, and high efficiency. It is protected from explosion, overload, short circuit, and phase failure; it also has overheat, air filter blocking, oil filter blocking, and oil core blocking alboom, overheat shutdown and other protectors, and triple protection of regulating valve, pressure control valve and safety valve to prevent running under overpressure. The filter element of the oil separator is made of imported fine glass fiber to keep oil content of the compressed air below 3ppm.

Technical Parameters of KAISHAN ML Explosion-proof Screw Air Compressor

Model	MLGF3.6/7-22G	MLGF6/7-37G	MLGF7.6/7-45G	MLG10/8-55G
Capacity m³/min	3.6	6	7.6	10
Working pressureMPa	0.7	0.7	0.7	0.8
Applied voltage (V)	380/660	380/660(660/1140)	380/660(660/1140)	380/660(660/1140)
Main motor powerkW	22	37	45	55
Motor explosion-proof mark	ExdI	ExdI	ExdI	ExdI
Weightkg	1160	1600	1700	2250
Length×width×highmm	2300×960×1330	2730×1100×1400	2940×1200×1480	2940×1200×1480
Gauge mm	600/762/900	600/762/900	600/762/900	600/762/900

Model	MLGF13/7-75G	MLGF16/8-90G	LGF21/8-132G	MLG25/8-160G
Capacitym³/min	13	16	21	25
Working pressureMPa	0.7	0.8	0.8	0.8
Applied voltageV	380/660(660/1140)	380/660(660/1140)	380/660(660/1140)	380/660(660/1140)
Electric control box explosion-proof mark	ExdibI	ExdibI	ExdibI	ExdibI
Motor explosion-proof mark	ExdI	ExdI	ExdI	ExdI
Weightkg	2600	2648	3725	3760
Length×width×highmm	3240×1210×1550	3240×1210×1550	3560×1360×1695	3740×1360×1745
Gauge mm	600/762/900	600/762/900	600/762/900	600/762/900

Model	MLGF30/8-185G	MLGF35/8-200G	MLGF42/8-250G	MLG42/8-250G
Capacitym³/min	30	35	42	42
Working pressureMPa	0.8	0.8	0.8	0.8
Applied voltageV	660/1140	660/1140	660/1140	660/1140
Main motor powerkw	185	200	250	250
Motor explosion-proof mark	ExdI	ExdI	ExdI	ExdI
Weightkg	4235	4255	5860	5860
Length×width×highmm	3850×1430×1850	3850×1430×1850	4450×1600×2000	4300×1600×2000
Gauge mm	600/762/900	600/762/900	600/762/900	600/762/900
