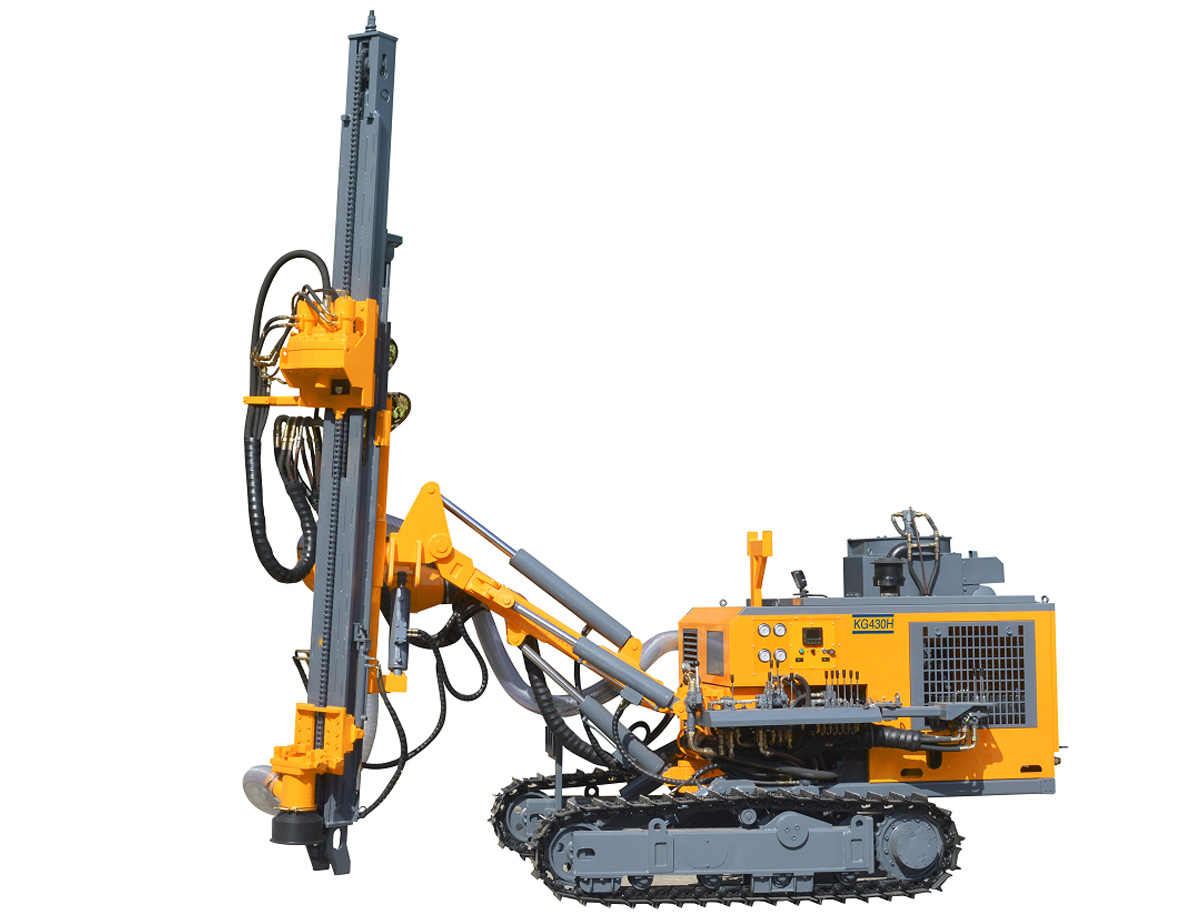

KG430/KG430H Surface DTH Drilling Rig

Home » Products » Drill Rigs and Rock Drills »KG430/KG430H Surface DTH Drilling Rig

Get Operation Manual

KG430/KG430H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KGYX430 platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG430H is assembled with dust collector,it is suitable for environmental standards.

Technical Parameters of KG430/KG430H Surface DTH Drilling Rig

Model	KG430	KG430H
Weight	5300kg	5700kg
Dimension	600022502700mm	600024002700mm
Drilling hardness	f=6-20
Drilling diameter	Φ90-152mm
Economic drilling depth	25m
Rotation speed	75r/min
Rotary torque	5000N·m
Lifting force	40KN
Propulsion mode	Hydraulic Cylinders - Chain
Feed length	3175mm
Travel speed	0-2.5Km/h
Climbing capacity	30°
Ground clearance	500mm
Feed pitch angle	down 135° up 50°
Feed swing angle	left 91° right 5°
boom pitch angle	down 55° up 15°
boom swing angle	left 45° right45°
track oscillation	10°
Feed extension	900mm
Yuchai diesel engine	YC4DK80-T302(58KW/2200r/min)	YC4DK100-T304(73KW/220r/min)
Drill rod	76*3m
Toe-hole drilling	Min.350mm,Max.2850mm
