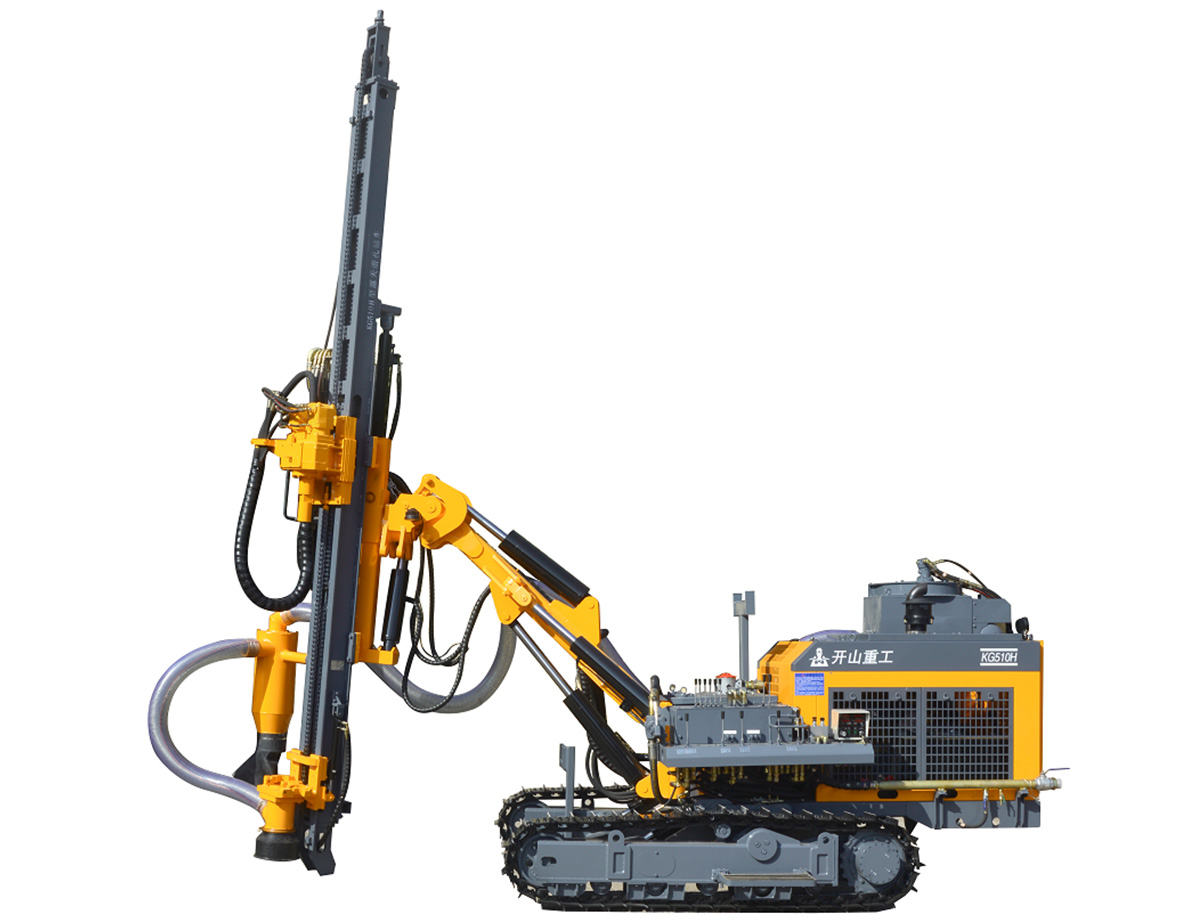

KG510/KG510H Surface DTH Drilling Rig

Home » Products » Drill Rigs and Rock Drills »KG510/KG510H Surface DTH Drilling Rig

Get Operation Manual

KG510/KG510H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on KG935S platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG510H is assembled with dust collector,it is suitable for environmental standards.

operation system

rotary system

multi boom

travel system

Technical Parameters of KG510/KG510H Surface DTH Drilling Rig

Model	KG510	KG510H
Weight	6500kg	7000kg
Dimension	680022002850mm	680024502850mm
Drilling hardness	f=6-20
Drilling diameter	Φ105-152mm
Economic drilling depth	25m
Rotation speed	110r/min
Rotary torque	3500N·m
Lifting force	40KN
Propulsion mode	Hydraulic Cylinders - Chain
Feed length	3000mm
Travel speed	0-3.5Km/h
Climbing capacity	≤30°
Ground clearance	440mm
Feed pitch angle	down 135° up50°
Feed swing angle	left 50° right 50°
boom pitch angle	down 50° up 25°
boom swing angle	left 45° right 45°
truck oscillation	±10°
Feed extension	900mm
Yuchai diesel engine	YC4DK80-T302(58KW/2200r/min)	YC4DK100-T302(73KW/2200r/min)
Drill rod	76*3m
Toe-hole drilling	Min.350mm,Max.3700mm
