KAISHAN OIL-FREE AIR COMPRESSOR

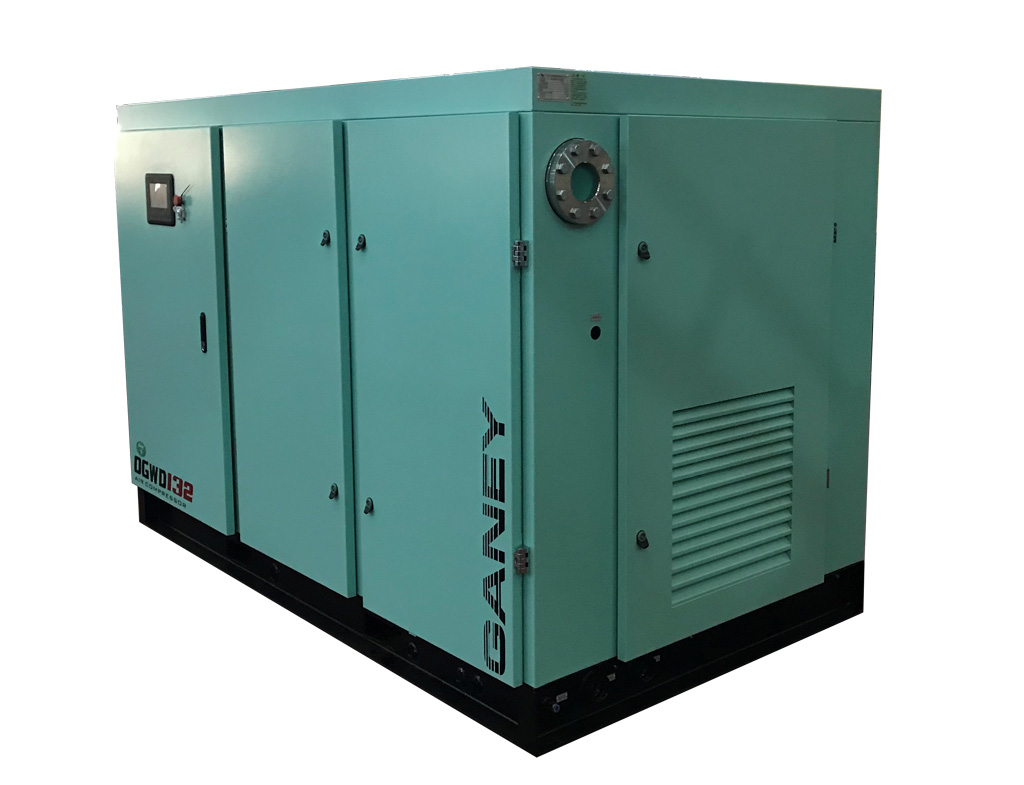

  • GANEY OGWFD132 OIL-FREE AIR COMPRESSOR
  • KAISHAN OGWD132 OIL-FREE AIR COMPRESSOR
  • KAISHANGROUP GANEY OGWFD132 WATER INJECTION LUBRICATE AIR COMPRESSOR
  • water-lubricated air compressor
Get Operation Manual
Oil-free Screw Air Compressor gets to the energy-saving standard of Oil-injected Types, and by at least 15% & 36% more energy-saving than the dry-compressing of double /single stage respectively.
Top Energy-saving: Apply Ganey’s exclusive tech, avoiding the low sliminess of water, & keeping the high displacement efficiency;
Top reliable: Worldwide initially exclusive anti-corrosive stainless-steel single screw air End with SKF bearing. ☆ Purely Oil-free: Water-injection Lubricates & seals the Air end, and apply the world-top patented sealing between the compressing & bearing’s chambers, assuring the whole system oil-free.
Less Maintenance: Water-injected lubrication makes the air end far more reliable than dry-compressing, minimizing the maintenance cost.
We are committed to delivering top air quality for critical applications including food and beverage processing, (petro) chemical processing, electronics manufacturing,medical&health care，textiles...
water-injected feature

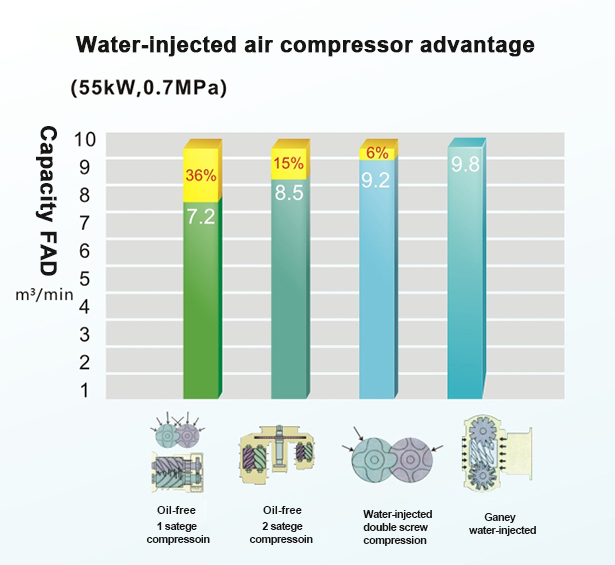

Water-injected advantage

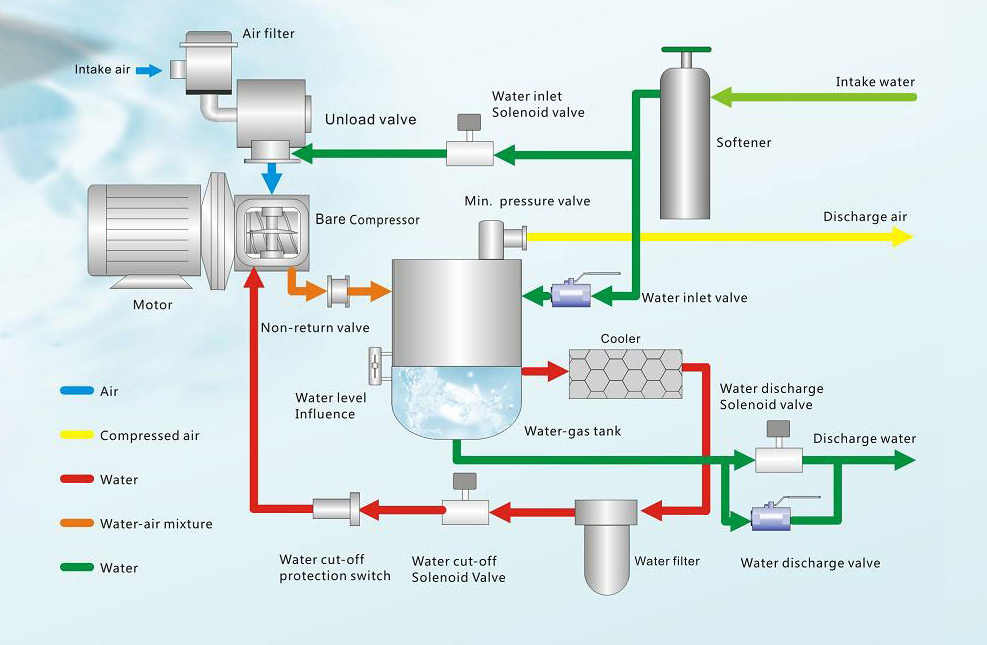

Water-injected system

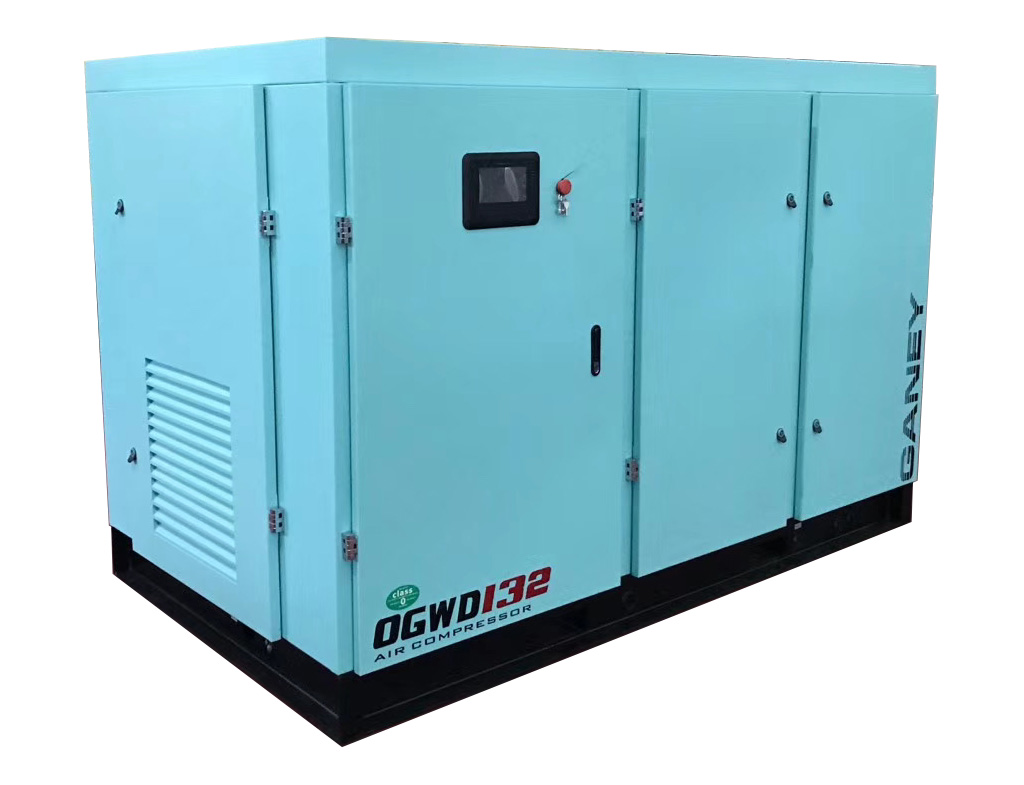

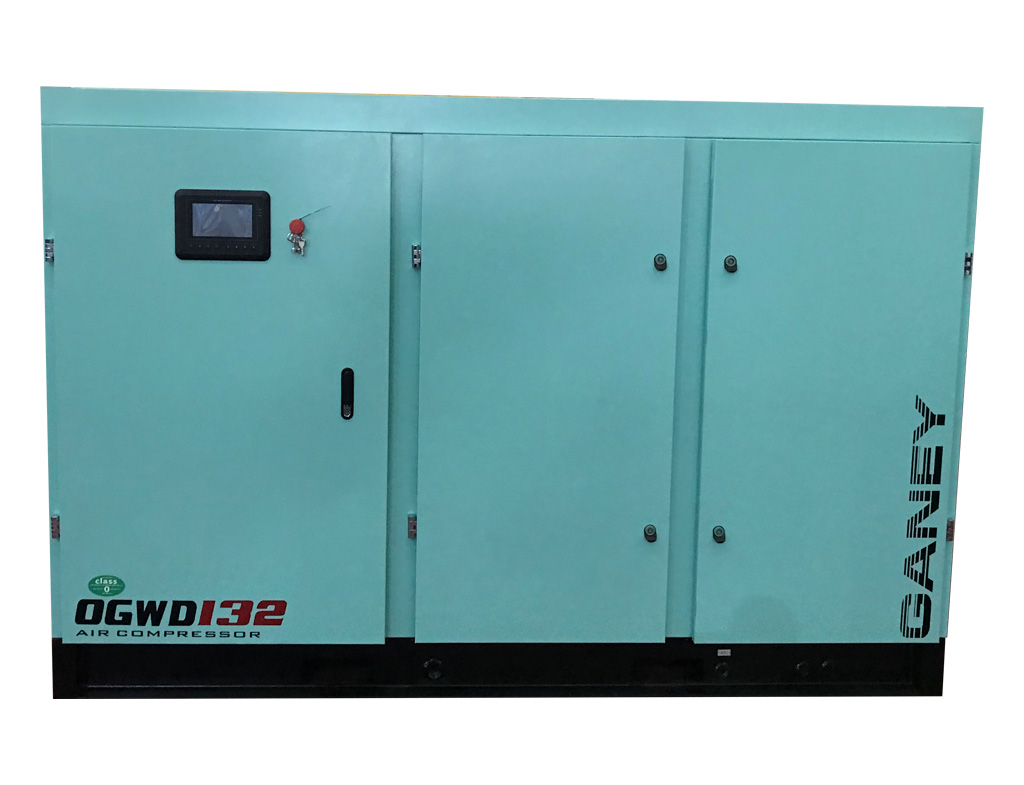

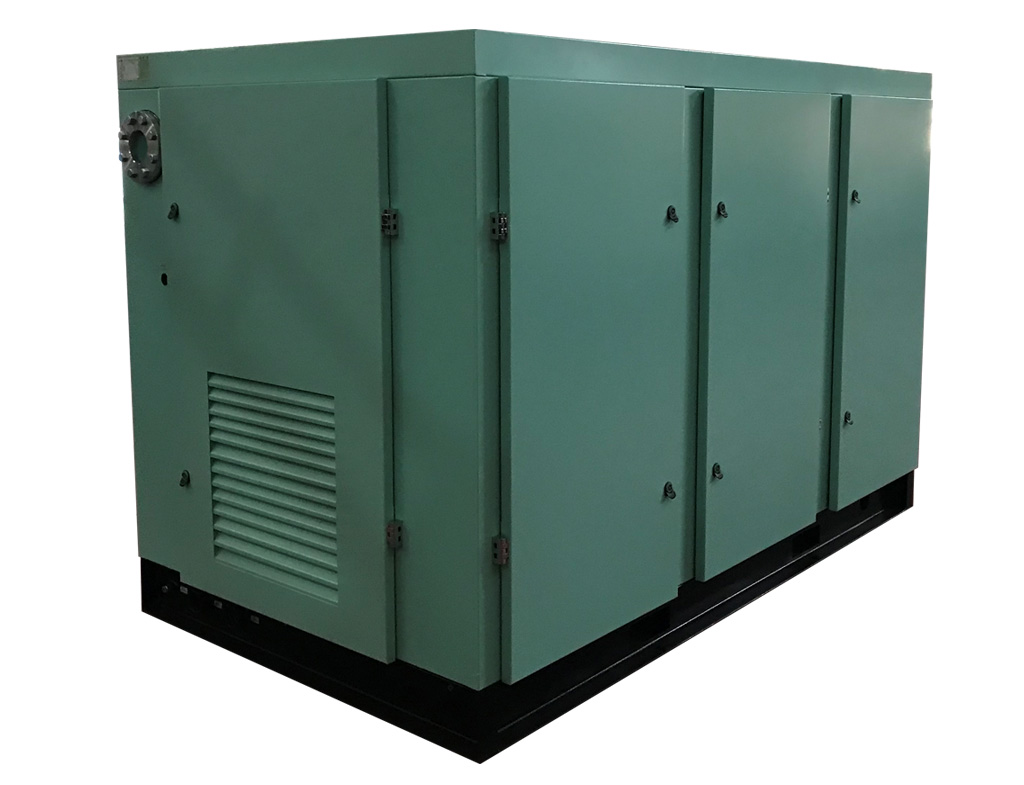

Ganey water-injected air compressor
Specification of water-injected
Specification of VSD
Model Working preissure Capacity Power Noise Weight Outlet Dimension
Mpa m3/min kw Db(A) kg L*W*H mm
OGWFD11 0.7 1.5 11 58 550 G1 1400*865*1150
0.8 1.4
1 1.2
OGWFD15 0.7 2.6 15 75±3 552
0.8 2.3
1 2
OGWFD22 0.7 3.5 22 600
0.8 3.2
1 2.7
OGWFD30 0.7 5.2 30 75±3 1030 G11/2 1850*1178*1480
0.8 5
1 3.6
OGWFD37 0.7 6.1 37
0.8 5.8
1 5.1
OGWD45 0.7 7.6 45 75±3 1532 G2 1870*1320*1480
0.8 7
1 6
OGWD55 0.7 9.8 55 1630
0.8 9.1
1 8
OGWFD45 0.7 7.6 45 75±3 2200 G2 2100*1470*1700
0.8 7
1 6
OGWFD55 0.7 9.8 55 2280
0.8 9.1
1 8
OGW(F)D75 0.7 13 75 75±3 machine:2270
Cool system:650		 DN65 machine
:2160*1370*1705
cool system:1450*1450*1666
0.8 12
1 11
OGW(F)D90 0.7 16 90 machine:2310
cool system:800		 machine:2160*1370*1705
cool system:1620*1620*1846
0.8 15.8
1 14
OGW(F)D110 0.7 19.6 110 78±3 machine:2695
cool system:800		 DN80 machine:2600*1470*1680
cool system:1620*1620*1846
0.8 18.9
1 16.5
OGW(F)D132 0.7 23.3 132 machine:3090
cool system:800
0.8 21.6
1 19.3
OGWD160 0.7 29 160 82±4 2930 DN100 3410*1865*2190
0.8 28
OGWD185 0.7 33.8 185 2960
0.8 31.5
1 28.8
OGWD200 0.7 36 200 2960
0.8 34
1 30
OGWD220 0.7 39 220 3320
0.8 37
1 33
OGWD250 0.7 42.5 250 3620
0.8 41.5
1 39
注："P" Permanent magnet frequency,"OG" single screw,“W” water-injected,“F” air cool,Default water cool
