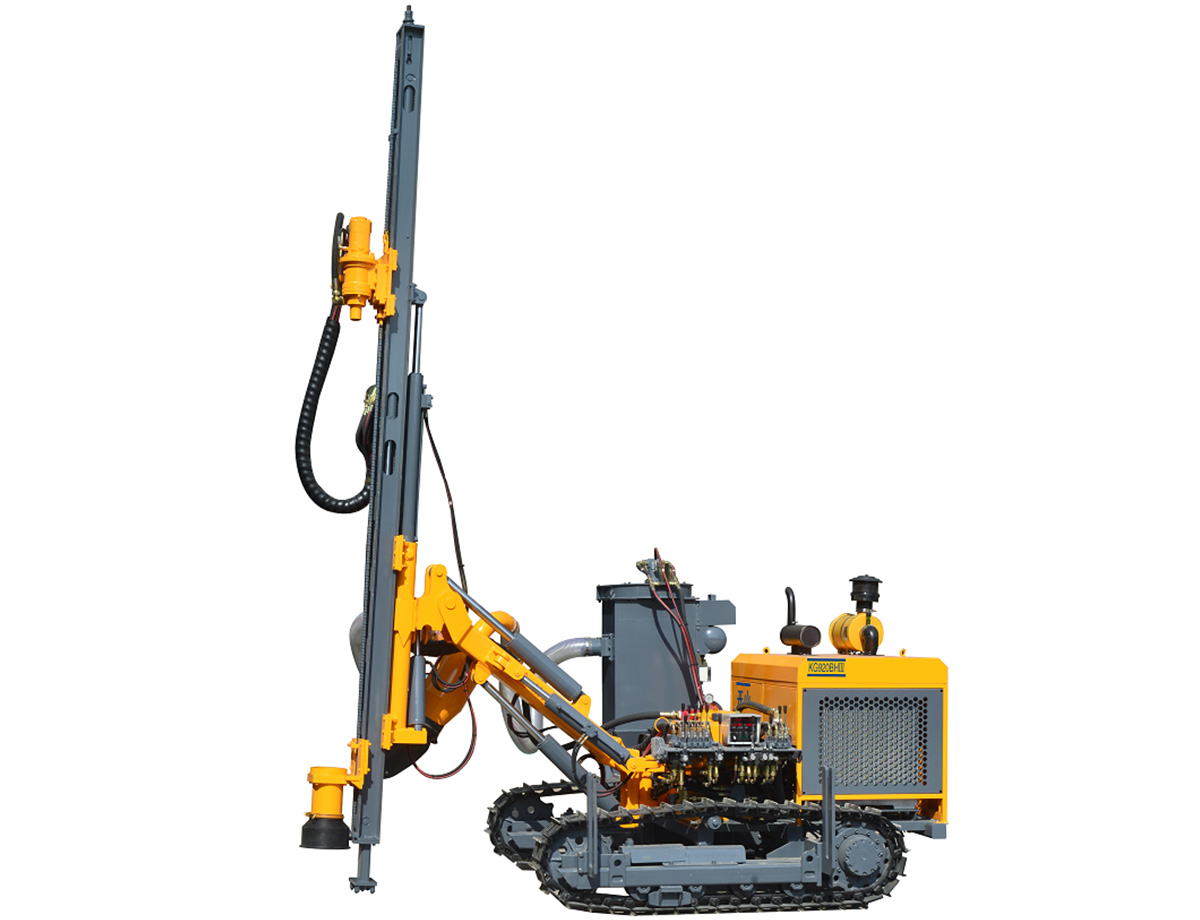

KG920BIII/KG920BHIII Surface DTH Drilling Rig

Home » Products » Drill Rigs and Rock Drills »KG920BIII/KG920BHIII Surface DTH Drilling Rig

Get Operation Manual

KG920BIII is an improved DTH drilling rig as the national requirements of environmental protection,it is Designed ,it is with Yuchai double-cylinder diesel engine(GB 3),it meets the national requiements of Emissions,the multi-angle boom for drilling lower horizontal hole.its hydraulic system and and hydraulic cylinder have been improved.
KG920BHIII is assembled with dust collector,it is suitable for environmental standards.

operation system

rotary system

Multi drill boom

travel system

Technical Parameters of KG920BIII/KG920BHIII Surface DTH Drilling Rig

Model	KG920BIII	KG920BHIII
Weight	4200kg	4400kg
Dimension	560024002300mm	560026002300mm
Drilling hardness	f=8-20
Drilling diameter	Φ80-115mm
Economic drilling depth	25m
Rotation speed	110r/min
Rotary torque	1650N·m
Lifting force	15KN
Propulsion mode	Cylinders - Chain
Feed length	3780mm
Travel speed	0-2.5Km/h
Climbing capacity	≤30°
Ground clearance	350mm
Feed pitch angle	down 135° up50°
Feed swing angle	left 100° right45°
boom pitch angle	down 50° up25°
boom swing angle	left 44° right45°
Feed extension	900mm
Diesel engine	Yuchai YCD4R23T8-80(59KW/2400r/min)
Drill rod	64*3m
Toe-hole drilling	Min.350mm,Max.2750mm
