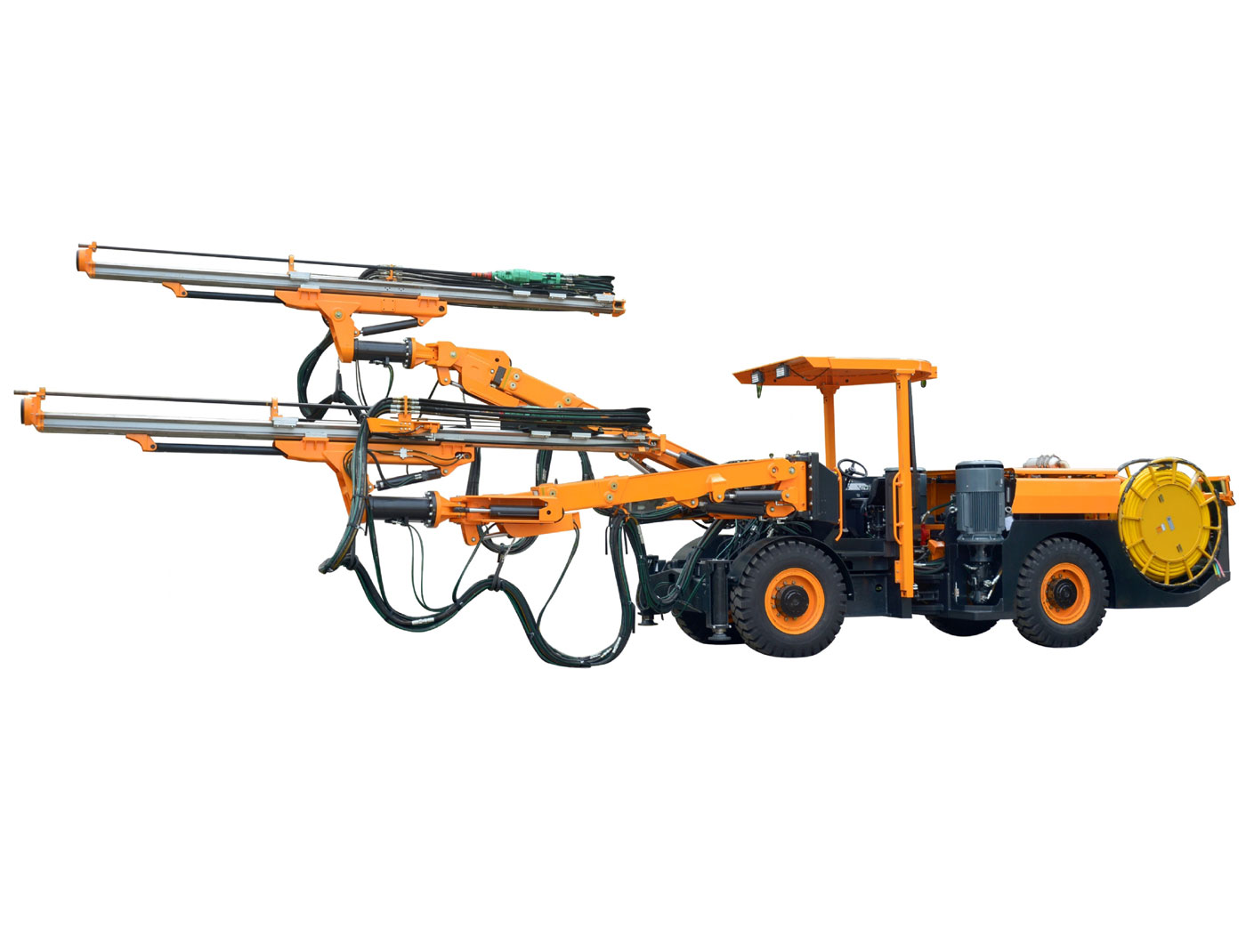

KJ421 Underground Mining Drill Rigs and Tunneling Jumbo to tunneling operation at the section of 16-68m² in hard-rock mine.
Its firm and reliable universal big boom has the best shape of section coverage, boosting the 360° overturn and automatic leveling of the beam for rapid and convenient borehole positioning. The big boom can also be used for lateral cross hole opening and anchor rod boring operations.

The arrangement of the jumbo ensures the good view of the operator. powerful 4-wheel drive hinge chassis ensures flexible, quick and safe driving in a narrow roadway.

The high-frequency percussion rock driller uses the cascaded piston to optimize the efficiency of shock wave transmission, raise the drilling speed, reduce clamping bit consumption and enhance the soundness of device.

The big space of operation and a series of automatic functions can help the driver to concentrate their attention to safe, rapid and accurate tunneling.

All its repair and maintenance parts have been protected well, and its repair and maintenance are easy.

Technical Parameters of KJ421 Underground Mining Drill Rigs and Tunneling Jumbo

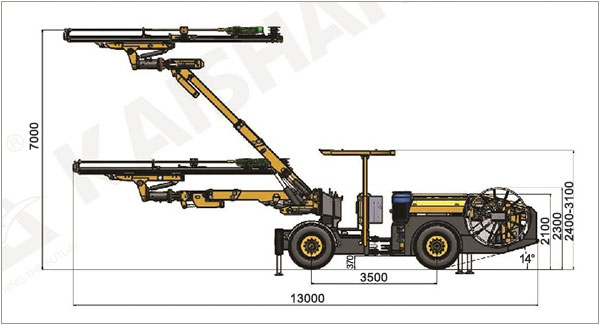

Overall Dimension (including an optional auxiliary power station)

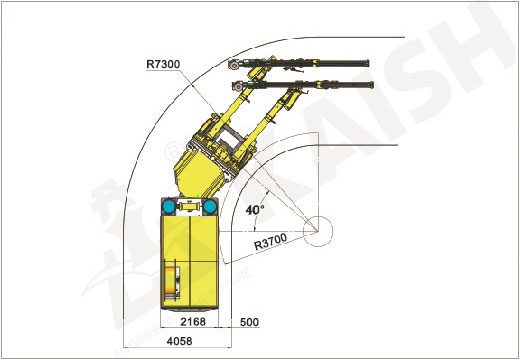

Turning Radius

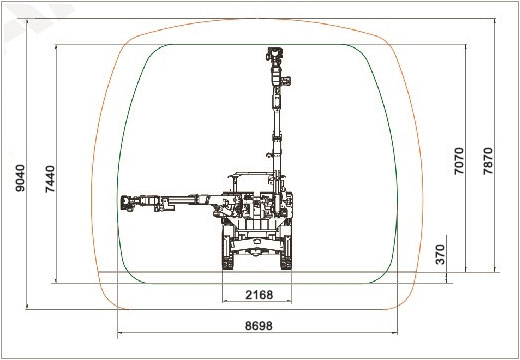

Coverage area
