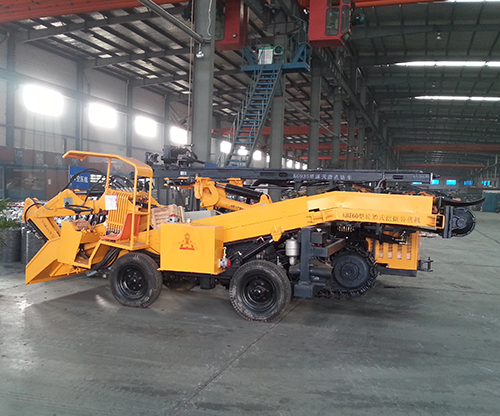

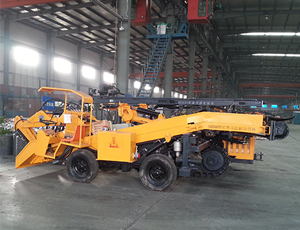

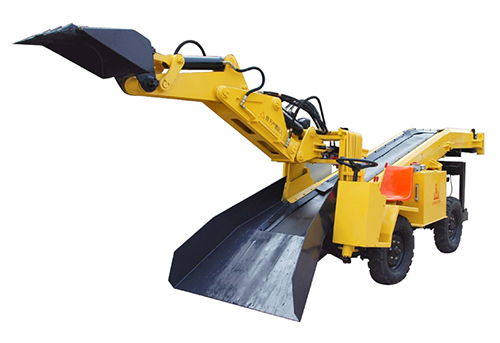

KBT60 tire mucking loader integrates collection and conveyance, characterized by compact structure, safety and reliability, mainly applied to metal, non-metal, diversion tunnels, excavation tunnels and other collection and conveyance loading constructions of non-explosive fragmentary earth and rocks with a narrow operation space and a small production scale. It combines hydraulic manipulator and electric conveying mechanism, with collection and conveyance functions. This machine adopts the motor and diesel-engine linkage driven hydraulic system, characterized by convenient Capacity, safety, environmental friendliness, low noise and high power. It is an ideal slagging-off and loading device for mines and mini-tunnels.

The power source of this machine is the combination of the external 380V three-phase alternating current supply motor and the diesel engine of the machine. It adopts a main motor and a motorized pulley as its working power, and the diesel engine power which can make machine Capacity convenient. Its functions include traveling,

digging and collection, conveyance, loading and bottom-clearing. Its traveling mechanism is driven by a hydraulic

motor, with such functions as moving forward, moving backward and automatic braking. Its digging and collection are carried out by its manipulator. The hydraulic operation controls the upward, downward, leftward and rightward rotation of the manipulator to complete digging, collection, loading and unloading. The motorized pulley drives the belt for conveyance. At the time of loading, the conveyor is lifted by two hydraulic cylinders and locks the cylinders as pivots for loading and unloading.

Technical Parameters of KBT60 Tire Mucking Loader
