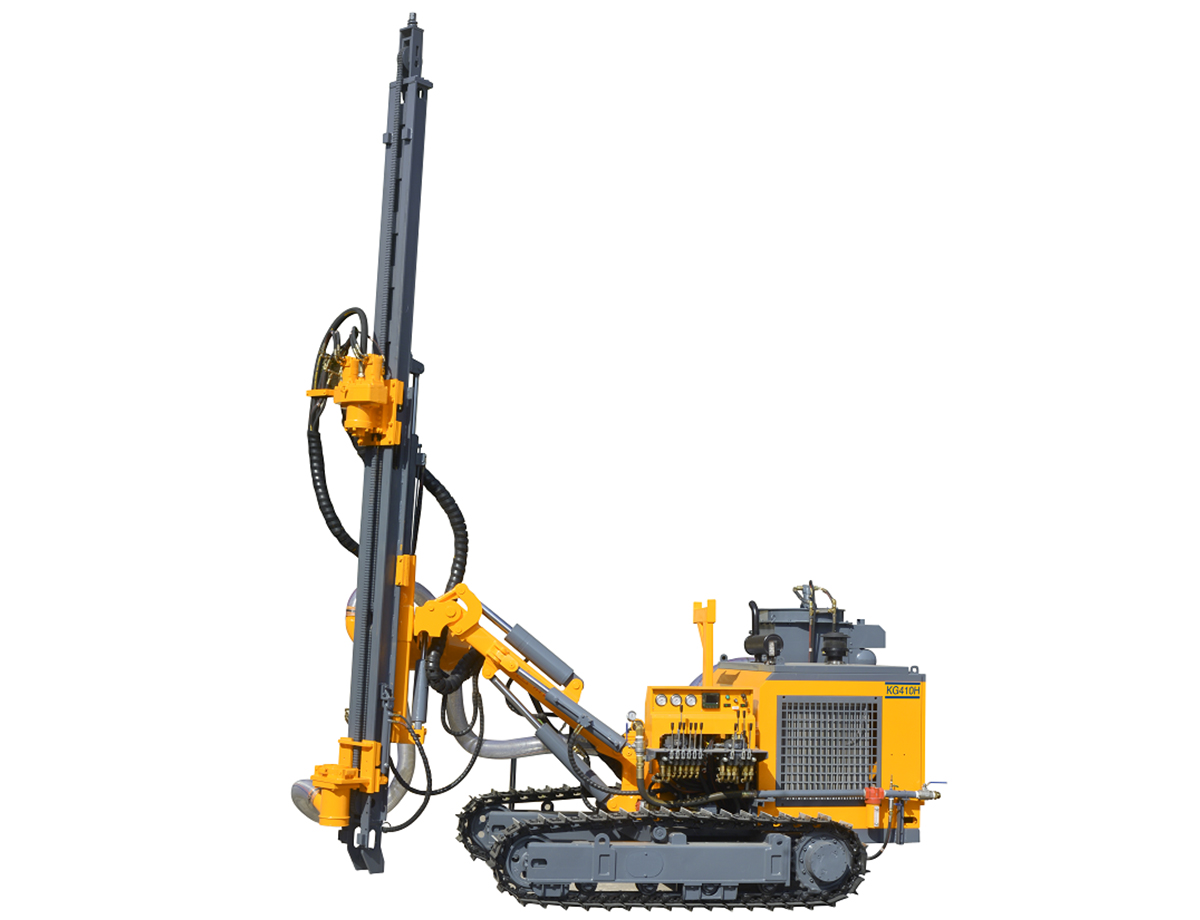

KG410/KG410H Surface DTH Drilling Rig
Home » Products » Drill Rigs and Rock Drills »KG410/KG410H Surface DTH Drilling Rig

KG410/KG410H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on YC726 platform,it is with piston travel motor,improve the working pressure and climbing capacity.
KG410H is assembled with dust collector,it is suitable for environmental standards.

Technical Parameters of KG410/KG410H Surface DTH Drilling Rig

Model KG410 KG410H
Weight 4500kg 4700kg

Dimension

6150*2350*2700mm

6150*2350*2700mm

Drilling hardness f=6-20

Drilling diameter

Φ90-115mm

Economic drilling depth

25m

Rotation speed

120r/min

Rotary torque

2000N·m

Lifting force

40KN

Propulsion mode

Hydraulic Cylinders - Chain

Feed length

3980mm

Travel speed

0-2.5Km/h

Climbing capacity

≤30°

Ground clearance

280mm

Feed pitch angle

down 135° up50°

Feed swing angle

left 100° right45°

boom pitch angle

down 50° up25°

boom swing angle

left 44° right45°

Feed extension

900mm

Diesel engine

Yuchai YCD4R23T8-80(59KW/2400r/min)

Drill rod

64*3m

Toe-hole drilling

Min.350mm,Max.2840mm
