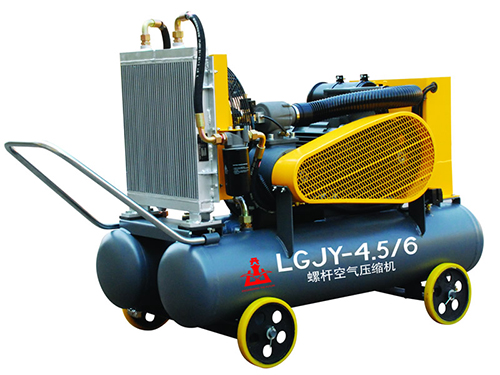

LGJY series screw air compressor is upgrade product to replace small piston air compressor.
Characteristics of LGJY series screw air compressor:
LGJY series screw air compressor is electric mobile machine which is environment friendly, easy to move and newly developed according to the features of mine. It is upgrade product to replace small piston air compressor, to make your production and construction humanized and professional and to provide great convenience for your mining construction.
Safe and reliable mining screw air compressor of a new generation.
The main body of screw air compressor is specially designed with large rotor at low speed and thanks to world leading type line design, the entire machine is provided with excellent performance.
The air compressor is of simple and compact structure and equipped with horizontal type air storage tank, thus it is easy to install and particularly useful for areas with limitation on height and width.
Reasonable air intake control system.
It adopts normally open air inlet value to build pressure quickly and guarantee lubrication of the main machine.
Reliable minimum pressure value and solenoid valve.
By using cyclone separation, the unit has good coarse separation which guarantees low oil consumption.

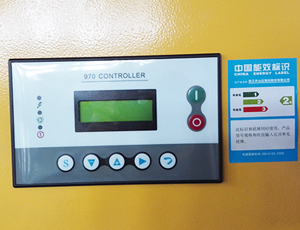

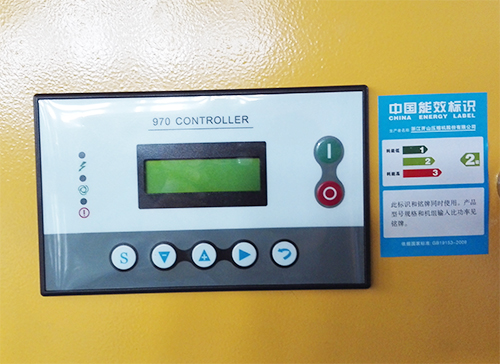

Humanized man-machine interface display control system.
It is easy and simple to operate.
Running state is clear at a glance.
It can offer service for 24 hours with nobody on duty.
Technical Parameters of LGJY series screw air compressor
Name |
LGJY-3.6/6 |
LGJY-3.0/7 |
LGJY-4.5/6 |
LGJY-3.6/7 |
Rated working pressure (MPa) |
0.6 |
0.7 |
0.6 |
0.7 |
Capacity(m3/min) |
3.6 |
3 |
4.5 |
3.6 |
Rated motor power (kW) |
18.5 |
18.5 |
22 |
22 |
Dimensions (mm) |
1600X820X1200 |
|||
Weight (Kg) |
600 |
600t |
630 |
630 |
