With the most famous design in the market, KJ series industrial piston air compressor is mature, reliable and easy to maintain. It is featured by small volume, slight weight, easy movement, simple structure, high efficiency, and high performance cost ratio. It is made of good materials with exquisite workmanship.

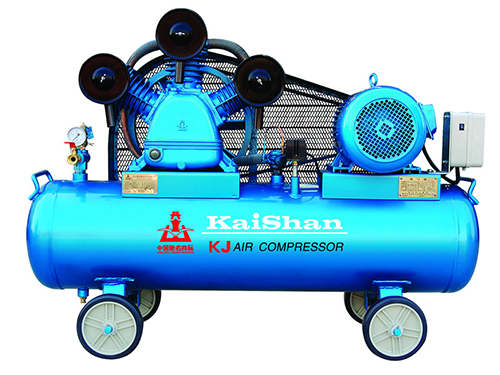

KAISHAN KJ Low Pressure Industrial Piston Air Compressor

Thanks to low speed design, it runs quietly and has longer service life;

Equipped with a reed valve, it has high efficiency;

Air filter element is made of filter paper imported to generate good filtering and noise reduction effect and it is durable;

Electromagnetic switches of import brands, such as Schneider and T-verter, are used;

RIKEN piston ring is durable without lubrication;

Respirator channel is of labyrinth structure without oil leakage;

Relevant moving parts run smoothly at low noise after precision balance;

Check value element is made of new composite material to be air tight;

The fan wheel has better cooling effect by using patent technology of Zhejiang University.

Technical Parameters of KAISHAN KJ Low Pressure Industrial Piston Air Compressor

No.	Model	Electric motor	Capacity	Maximum operating pressure	Dimensions
		HP/kW	m3/min	MPa(kg/cm2G)	mm×mm×mm
1	KJ100	10/7.5	0.90	0.8(8)	1550×550×1050
2	KJ75	7.5/5.5	0.67	0.8(8)	1550×500×1000
3	KJ40	4/3	0.36	0.8(8)	1200×500×900
4	KJH100	10/7.5	0.80	1.25(12.5)	1550×550×1050
5	KJH75	7.5/5.5	0.60	1.25(12.5)	1550×500×1000
