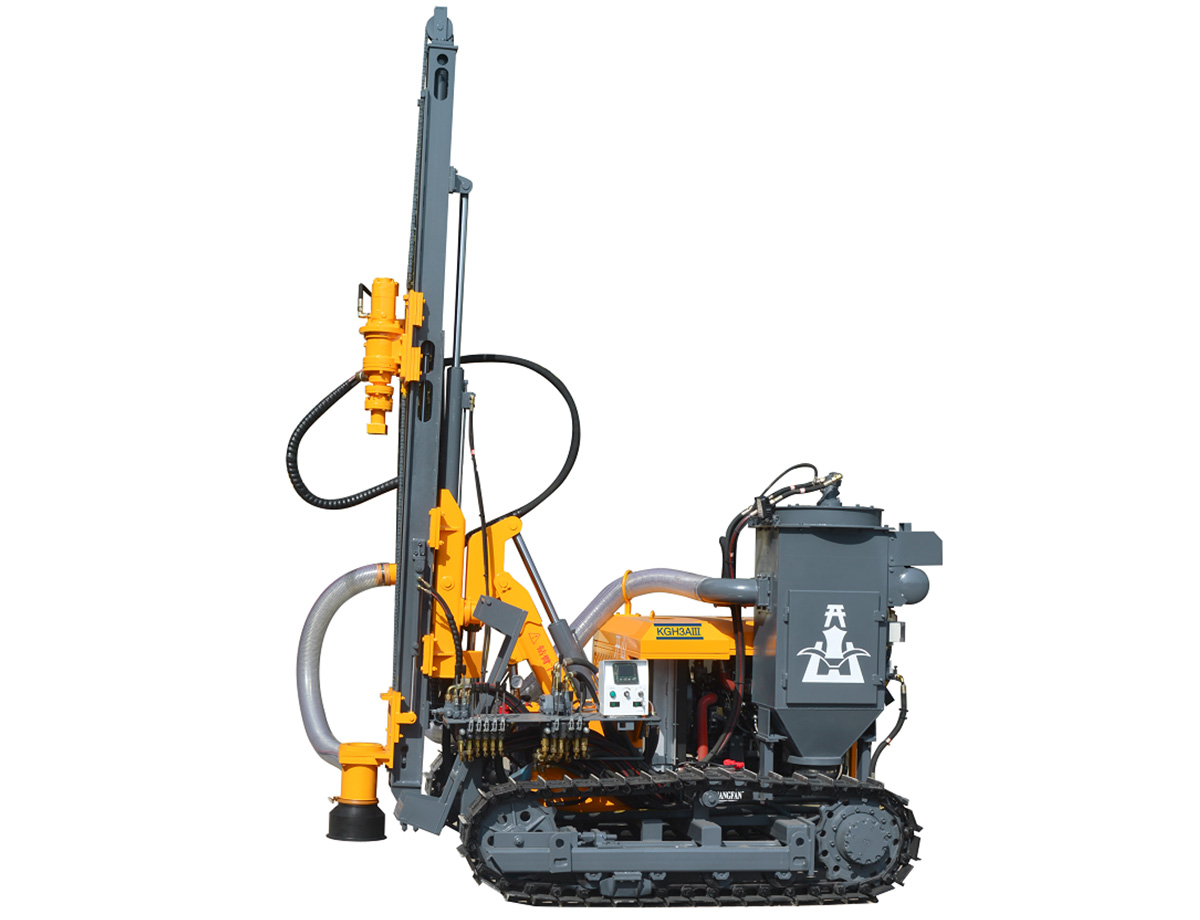

KGH3AIII Surface DTH Drilling Rig
Home » Products » Drill Rigs and Rock Drills »KGH3AIII Surface DTH Drilling Rig

KGH3AIII is an improved DTH drilling rig as the national requirements of environmental protection,it is Designed and developed based on KG915/KGH3 platform,it is with Yuchai double-cylinder diesel engine(GB 3),it meets the national requiements of Emissions,the multi-angle boom for drilling lower horizontal hole.its hydraulic system and and hydraulic cylinder have been improved.It is assembled with dust collector,it is suitable for environmental standards.

  • KAISHAN DRILLING RIG
  • operation system
  • KAISHAN KGH3AIII DRILLING RIG
  • rotary system
  • KAISHAN DRILLING RIG
  • Multi drill boom
  • KAISHAN KGH3AIII DRILLING RIG
  • travel system

Technical Parameters of KGH3AIII Surface DTH Drilling Rig

Model KGH3AIII
Weight 4200kg

Dimension

4450*2230*2100mm

Drilling hardness f=8-20

Drilling diameter

Φ80-105mm

Economic drilling depth

25m

Rotation speed

110r/min

Rotary torque

1650N·m

Lifting force

15KN

Propulsion mode

Cylinders - Chain

Feed length

2670mm

Travel speed

0-2.0Km/h

Climbing capacity

30°

Ground clearance

310mm

Feed pitch angle

down 105° up12°

Feed swing angle

left 20° right24°

boom pitch angle

down 35° up60°

Feed extension

900mm

Diesel engine

Yuchai YCD4R23T8-80(59KW/2400r/min)

Drill rod

64*2m

Toe-hole drilling

Min.360mm,Max.2875mm
