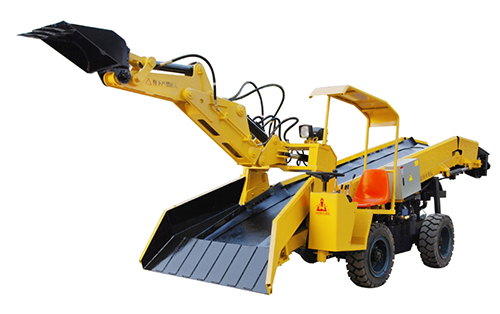

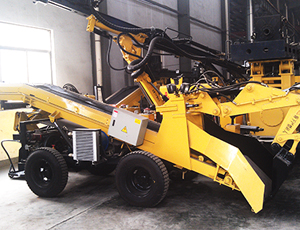

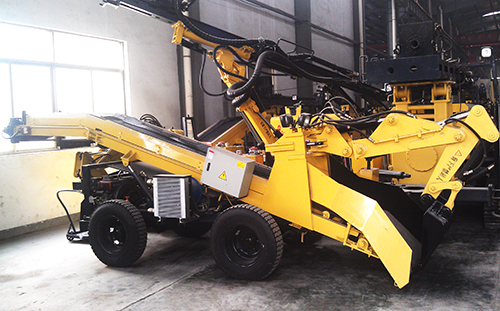

KB8T Tire Mucking Loader
Home » Products » Road Machinery » Crawler Mucking Loader » KB8T Tire Mucking Loader

KB8T tire mucking loader is an innovative product independently designed by Kaishan Group. It is extensively applied to laneway or open-air construction for mines, highways, railways, hydropower and other infrastructures.

Its ingenious double-power (diesel/electricity) and double-pump system design enhances the system stability and enables timely switch in case of any power problem, thus tremendously enhancing the reliability of operations in the special environments of laneway hole mining.

Its innovatively-designed folded conveying device extends the length and height of conveying belts, increases the slag loading capacity of carrier vehicles very effectively and reduces the logistics cost in the state of machine packed transportation.

Its reliable and practical articulated tire chassis design, plus its folded transmission rack, considerably reduces the turning radius and enables the machine to freely travel in laneways.

Its traveling system composed of motor direct-driven axial and unique floating axle, matching its new-type traveling hydraulic system, enables the machine to suit various drift ground surfaces, with high traveling safety and strong traction.

Technical Parameters of KB8T Tire Mucking Loader

Model

KB8T

KBT60

Total length

mm

5900 (Working condition6600)

5800

Total width

mm

1830

1650

Machine height

mm

1900

1700

Wheelbase

mm

1650

1700

Maximum radius

mm

650×350

650×350

Ground clearance minimum

mm

230

190

Pendulum angle of digging arm

°

Left 21 right 21 total42

Left 21 right 21 total42

Travel speed

Km/h

0-2

0-4

Maximum working Angle of conveyor belt

°

≤22

≤22

Main power

kW

11

18.5

Motorized pulley power

kW

5.5

4

Theoretical productivity

m³/h

40-80

30-60

Conveyer Length

m

12.1

10.7

Total weight

Kg

4200

3100
