Boreas Screw Compressor
Home » Products » Air Compressor » Boreas Screw Compressor

Boreas (Boreas, name of the wind god in Greek mythology) series screw compressors satisfy requirements of the masses of users in the field of low-power, low priced screw compressors.

Less quick-wear parts, compact structure and good stability.

Man-machine interface display control system.

Particularly convenient and simple to operate.

Running status clear at a glance.

Capable of 24-hour unattended operations.

With standby output interface, able to realize multiple units interlocking control and remote diagnostic control.

New-generation low-consumption and high-efficiency motor.

Large starting torque.

Insulation grade F and protection grade IP23.

With refueling device and capable of non-stop refueling.

Efficient air inlet valve.

ON/OFF control mode.

With check valve blowout preventing design.

Built-in oil separation system.

Built-in oil separation design guaranteeing oil and gas separation effects, reducing fuel consumption, and providing adequate assurance for the product quality from the initial design.

Good economics, easy maintenance and suitable for small power host machine.

It provides high-efficiency, easily maintained and more economic air system.

BK7.5-8G
BK11-8G/BK11-8/BK11-10/BK11-13
BK15-8G/BK15-8/BK15-10/BK15-13
Model BK7.5-8G BK7.5G-8
Working pressure (Mpa) 0.8 0.8
Capacity (m3/min) 1.2 1.2
Motor power(kw) 7.5 7.5
Outlet G3/4 G3/4
Noise (dB) 72 72
Weight (kg) 200 200
Dimension (mm) 800×620×800 880×510×800
VSD Weight (kg) 200 /
VSD Dimension (mm) 800×620×800 /
BK18-8/BK18-10/BK185-13

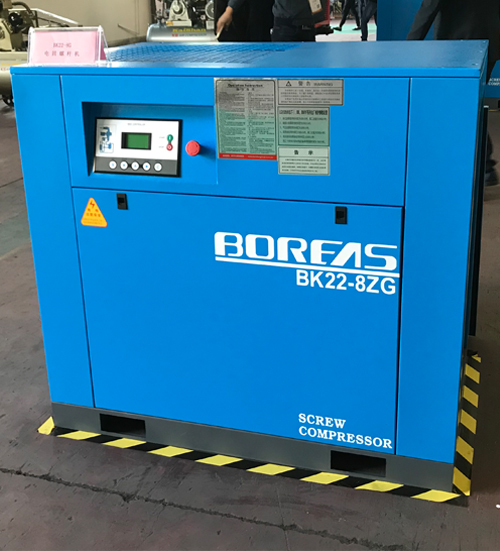

BK22-8G/BK22-10G/BK22-13G
BK30-8G/BK30-10G/BK30-13G
Model BK18-8G BK18-10G
Working pressure(Mpa) 0.8 1.0
Capacity(m3/min) 3 2.7
Motor power(kw) 18.5
Outlet G1
Noise(dB) 74
Weight(kg) 380
Dimension(mm) 1080×800×1120
VSD Weight(kg) 400
VSD Dimension(mm) 1200×800×1120
BK37-8G/BK37-10G/BK37-13G
BK45-8G/BK45-8/BK45-10/BK45-13
BK55-8G/BK55-8/BK55-10/BK55-13
Model BK37-8G BK37-10G BK37-13G
Working pressure(Mpa) 0.8 1.0 1.3
Capacity(m3/min) 6 5.5 4.6
Motor power (kw) 37
Outlet G1½
Noise(dB) 76
Weight(kg) 570
Dimension(mm) 1340×850×1330
VSD Weight(kg) 620
VSD Dimension(mm) 1340×850×1330
BK75-8GH/BKL90-8GH

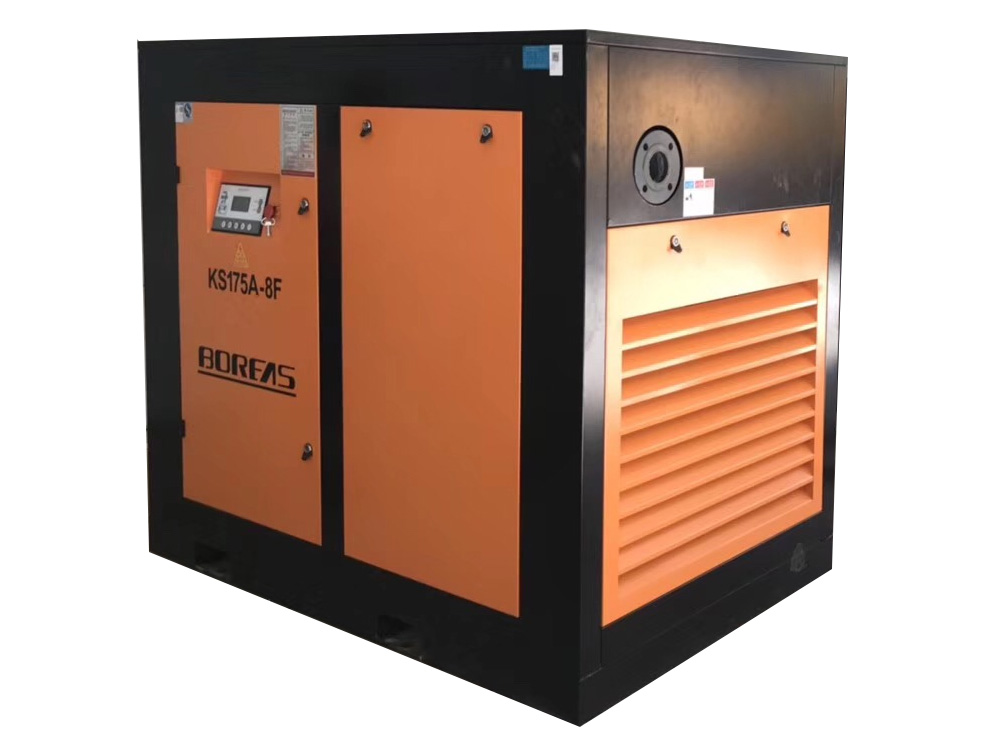

BK110-8GH/BK110-8T/BK132-8GH/BK132-8T/KS175A-8F
Model BK75-8GH BKL90-8GH
Working pressure(Mpa) 0.8
Capacity(m3/min) 13 16
Motor power (kw) 75 90
Outlet G2
Noise(dB) 81
Weight(kg) 1200 1230
Dimension(mm) 1800×1190×1710
VSD Weight(kg) 1280 1310
VSD Dimension(mm) 1800×1190×1710
