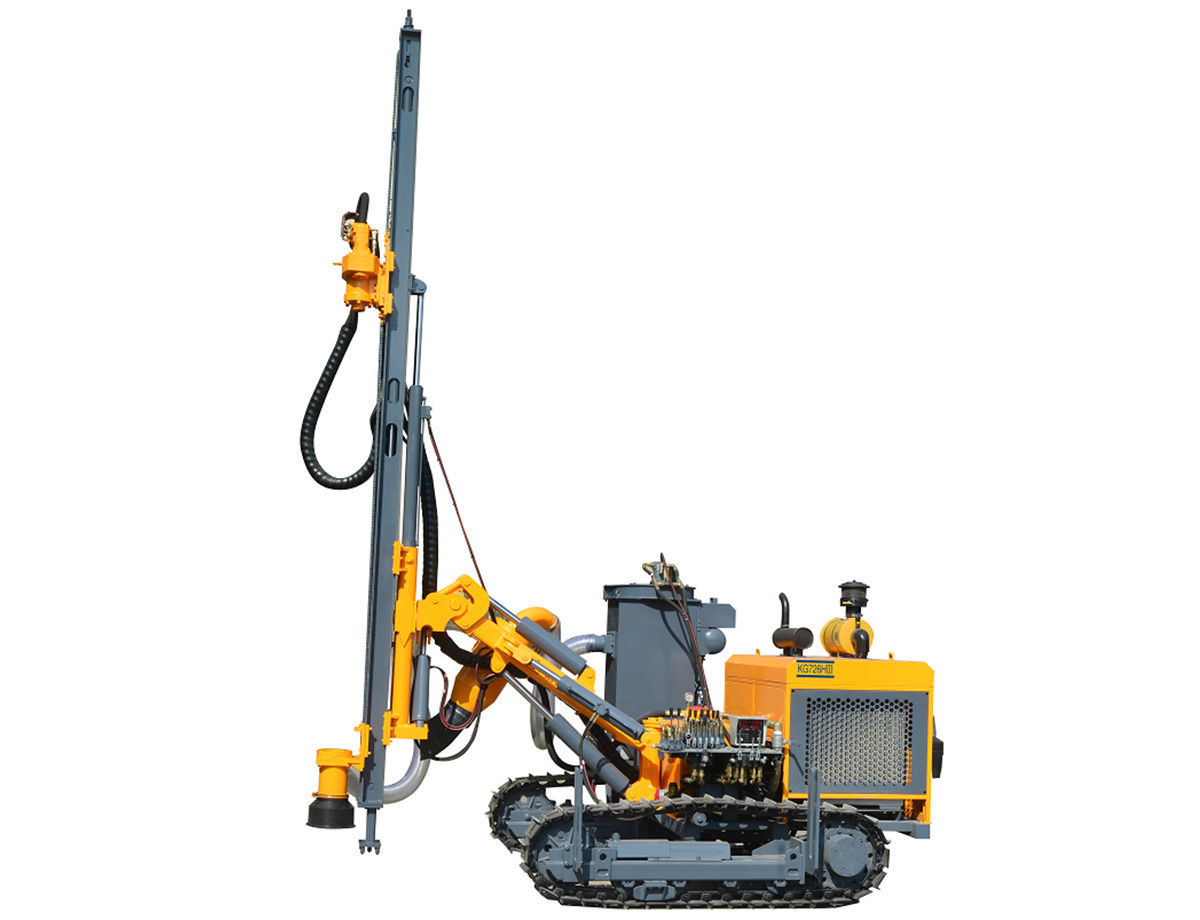

KG726III/KG726HIII Surface DTH Drilling Rig
Home » Products » Drill Rigs and Rock Drills »KG726III/KG726HIII Surface DTH Drilling Rig

KG726III is an improved DTH drilling rig as the national requirements of environmental protection,it is Designed ,it is with Yuchai double-cylinder diesel engine(GB 3),it meets the national requiements of Emissions,the multi-angle boom for drilling lower horizontal hole.its hydraulic system and and hydraulic cylinder have been improved.
KG726HIII is assembled with dust collector,it is suitable for environmental standards.

  • KAISHAN DRILLING RIG
  • operation system
  • KAISHAN KG726HIII DRILLING RIG
  • rotary system
  • KAISHAN DRILLING RIG
  • Multi drill boom
  • KAISHAN KG726HIII DRILLING RIG
  • travel system

Technical Parameters of KG726III/KG726HIII Surface DTH Drilling Rig

Model KG726III KG726HIII
Weight 4200kg 4400kg

Dimension

5600*2400*2300mm

5600*2600*2300mm

Drilling hardness f=8-20

Drilling diameter

Φ80-115mm

Economic drilling depth

25m

Rotation speed

120r/min

Rotary torque

2000N·m

Lifting force

18KN

Propulsion mode

Cylinders - Chain

Feed length

3780mm

Travel speed

0-2.5Km/h

Climbing capacity

30°

Ground clearance

350mm

Feed pitch angle

down 135° up50°

Feed swing angle

left 100° right45°

boom pitch angle

down 50° up25°

boom swing angle

left 44° right45°

Feed extension

900mm

Diesel engine

Yuchai YCD4R23T8-80(59KW/2400r/min)

Drill rod

64*2m

Toe-hole drilling

Min.350mm,Max.2750mm
