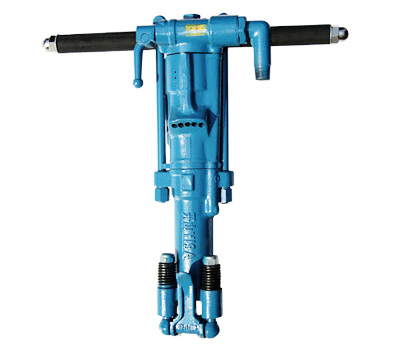

Y19A Hand-held Air-leg Dual-purpose Rock Drill
Home » Products » Drill Rigs and Rock Drills » Rock Drills » Hand-held Rock Drill » Y19A Hand-held Air-leg Dual-purpose Rock Drill

Y19A hand-held air-leg dual-purpose rock drill is a new generation of self-designed hand-held air-leg dual-purpose rock drill which is developed after a large number of tests by using computer simulation for dynamic analysis and modern optimal design methods including optimal and reliable design. Featured by portability and flexibility, small gas consumption, fast drilling, easy operation, easy maintenance and assembly, safety and reliability, and easy to use, repair and move, it is extensively used in excavation and blasting operation for quarrying, mining, water conservancy, building materials, energy source, traffic, military industry and geological engineering projects and becomes a light and efficient ideal tool for drilling rocks.

Technical Parameters of Y19A Hand-held Air-leg Dual-purpose Rock Drill

Model

Y19A

Weight

19

kg

Length

600

mm

Cylinder diameter

65

mm

Stroke

54

mm

Tracheal diameter

19

mm

Pipe diameter

13

mm

Stalk borer

22×108

mm

Aperture

φ30-φ42

mm

Working pressure

0.4-0.63

Mpa

Air consumption

≤43

L/Sec

Impact frequency

≥35

HZ

Maximum hole depth

5

m

Size

618×352×215

mm
