Mud pump

Mud pump is mainly used for feedling flushing fluid to well drilling in core drilling process.It is small and light,it is popular in geological prospect,water well ect.

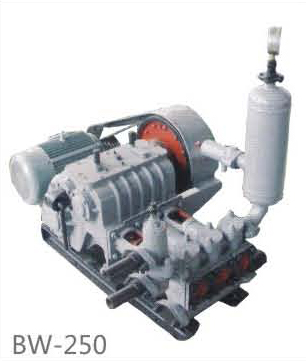

It is with two cylinder diameter Φ80mm and Φ65mm,When the hole depth is less than 600m it is suitable for cylinder diameter Φ80mm,when it is above 600m then use cylinder diameter of Φ65mm.t BW-250 mud pump is use for drilling depth max.1500m.

Technical Parameters of mud pump

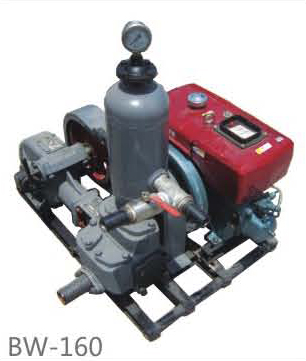

Model BW-160 BW-200 BW-250
Type Horizontal single cylinder Horizontal 2 cylinder Horizontal 3 cylinder
Stroke mm 85 100
Dia.of Cylinder mm 95 80,65
Reciprocating times 165 145 200
Pressure Mpa 1.3 4,6 2.5,4,4.5,6,7
Capacity L/mim 160 200,125 250,166
V-belt pulley mm 270 345 410
V-belt pulley type B*3 B*5
Speed rpm 951 530 500
Dia. Of inlet mm 45 65 76
Dia. Of outlet mm 38 37 51
Dimension mm 1110*725965 1050*630*820 1000*995*650
Weight kg 200 300 500
