New propulsion mechanism
Adopt cylinder chain pulley propulsion, compact structure, improve, good stability.
Brand power
Adopt brand single-cylinder diesel-powered, mechanism, easy maintenance.
Reliable hydraulic system
Using special hydraulic components to improve the stability and reliability of the system.
Additional oil cooling device, eliminating the influence of the hydraulic oil heat system.

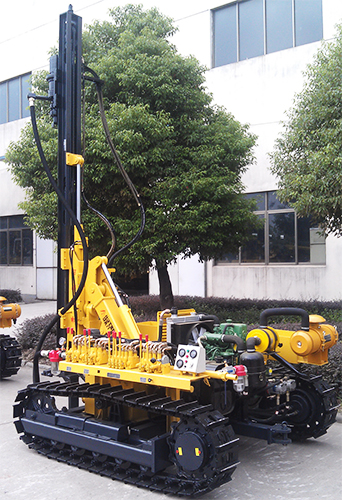

Technical Parameters of KY100J/YC100J Semi-Hydraulic Surface DTH Drilling Rig
Rock hardness |
f=6~20 |
Ground clearance(mm) |
254 |
Drilling diameter(mm) |
80~105 |
Travel speed (Km/h) |
0--2.0 |
Economic drilling depth(m) |
20 |
Drill boom lift angle |
- |
Pression d’air de travail(MPa) |
0.7~1.4 |
Boom swing |
- |
Air consumption(m^3/min) |
≥10 |
Guide swing |
-11.5°~+36.5° |
Rotation speed(rpm) |
0~65 |
Guide pitching |
-118.5°~+23.5° |
Lifting force(KN) |
15 |
Compensation guide (mm) |
900 |
Drill rod specification (mm) |
60x2000 |
Dimensions (mm) |
4100x2030x2020 |
Climbing capacity |
30° |
Total weight (Kg) |
3100 |
Remark |
Gas-liquid interaction |
Power |
ZS1125GM(20.2kW 2200r/min) |
