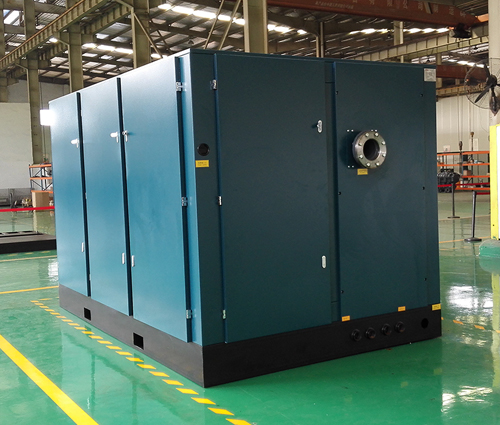

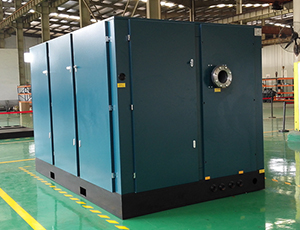

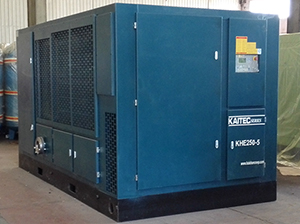

KAITEC KHE Screw Air Compressor

Home » Products » Air Compressor » KAITEC KHE Screw Air Compressor

Get Operation Manual

SKY low noise compressor- developed by North America Development Center.

Heavy duty design:

Direct-coupled drive without gear noise.

Centrifugal fan with slow-speed of revolution; variable frequency oil cooling fan .

Air intake silencer of the shell; air intake silencer of air compressor.

Low noise of KAITEC series is internationally excellent.

The drilling rig uses high efficiency SKY series screw rotor of the latest generation.

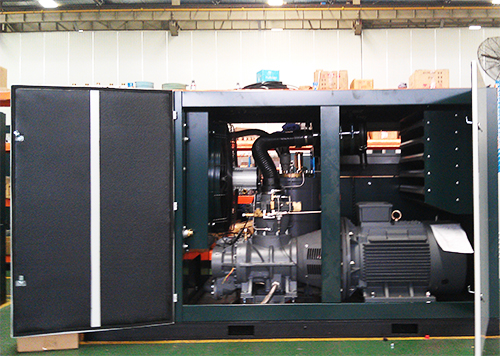

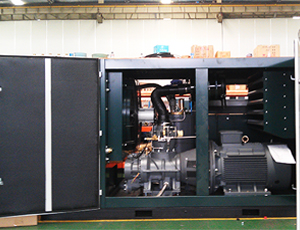

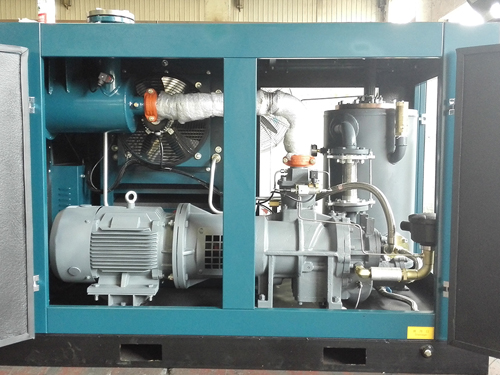

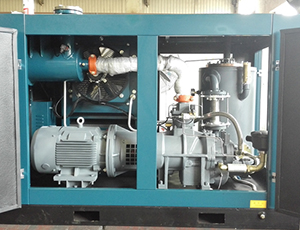

It is equipped with large direct-coupled rotor and low speed compressor.

It is featured by high efficiency, low noise, low vibration and high reliability.

It adopts triple design of cylinder and rolling cone bearing whose service life is ≥100, 000 hours.

High precision rotor guarantees performance and reliability.

Super low noise:

Noise value of 132kW KAITEC screw air compressor is only 73dB and such low noise is internationally excellent.

The energy efficiency of each compressor is higher than national energy-saving standard.

Low noise is internationally excellent.

The warranty period of SKY main engine, "heart" of screw air compressor is five years.

It is possible to reduce system pressure and energy consumption by centrally controlling 2 ~ 16 compressors. It is also capable of reducing leakage of compressed air to maintain stable pressure.

Technical Parameters of KAITEC KHE Screw Air Compressor

Model	KHE15	KHE18	KHE22	KHE30	KHE37
Capacity / Working pressure (m³/min /Mpa)	\	3.13/0.7	3.63/0.7	5.01/0.7	6.35/0.7
	2.50/0.8	3.10 /0.8	3.58/0.8	4.90/0.8	6.30/0.8
	2.2/1.0	2.79/1.0	3.03/1.0	4.05/1.0	5.64/1.0
	\	2.25/1.3	2.77/1.3	3.52/1.3	4.01/1.3
Power (kW)	15	18.5	22	30	37
Noise (db)	67	67	67	68	69
Length(mm)	1450	1550		1750
Width(mm)	890	930		1010
Height(mm)	1073	1140		1288

Model	KHE45	KHE55	KHE75	KHE90
Capacity / Working pressure (m³/min /Mpa)	7.87/0.7	10.15/0.7	14.39/0.7	16.86/0.7
	7.75 /0.8	10.00/0.8	14.18/0.8	16.80/0.8
	6.41/1.0	8.77/1.0	12.02/1.0	14.80/1.0
	5.43/1.3	6.34/1.3	9.80/1.3	11.90/1.3
Power (kW)	45	55	75	90
Noise (db)	70	70	72	72
Length(mm)	2220		2560
Width(mm)	1410		1520
Height(mm)	1720		1820

Model	KHE110	KHE132	KHE160	KHE185	KHE200
Capacity / Working pressure ( M3 /min/Mpa)	21.76/0.7	24.68/0.7	29.49/0.7	34.06/0.7	37.57/0.7
	21.55/0.8	24.63/0.8	29.35/0.8	33.56/0.8	37.42/0.8
	18.66/1.0	21.35/1.0	25.25/1.0	29.22/1.0	33.28/1.0
	16.47/1.3	18.47/1.3	21.12/1.3	25.14/1.3	29.08/1.3
Power (kW)	110	132	160	185	200
Noise (db)	73	73	75	75	76
Length(mm)	3110		3410
Width(mm)	1690		1760
Height(mm)	2070		2140

Model	KHE220	KHE250	KHE280	KHE315	KHE355	KHE400
Capacity / Working pressure (m³/min /Mpa)	42.92/0.7	46.94/0.7	51.35/0.7	56.79/0.7	66.08/0.7	75.05/0.7
	42.29/0.8	46.55/0.8	50.39/0.8	55.95/0.8	65.43/0.8	74.31/0.8
	37.11/1.0	41.93/1.0	46.08/1.0	50.08/1.0	55.12/1.0	64.46/1.0
	33.00/1.3	36.80/1.3	41.51/1.3	45.62/1.3	49.58/1.3	58.07/1.3
Motor power(KW)	220	250	280	315	355	400
Noise (db)	77	78	78	82	83	83
Length(mm)		3860			4200
Width(mm)		2200			2200
Height(mm)		2240			2240
