KAISHAN LGCY Diesel Portable Screw Air Compressor
Home » Products » Air Compressor » KAISHAN BKCY Diesel portable Screw Air Compressor

KAISHAN BKCY Diesel portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize optimal energy saving effect.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.

Technical Parameters of KAISHAN KSCY Diesel portable Screw Air Compressor

Model

Capacity
(m3/min)

Working pressure
(Mpa)

Diesel engine

Weight
kg

Dimensions
(mm)

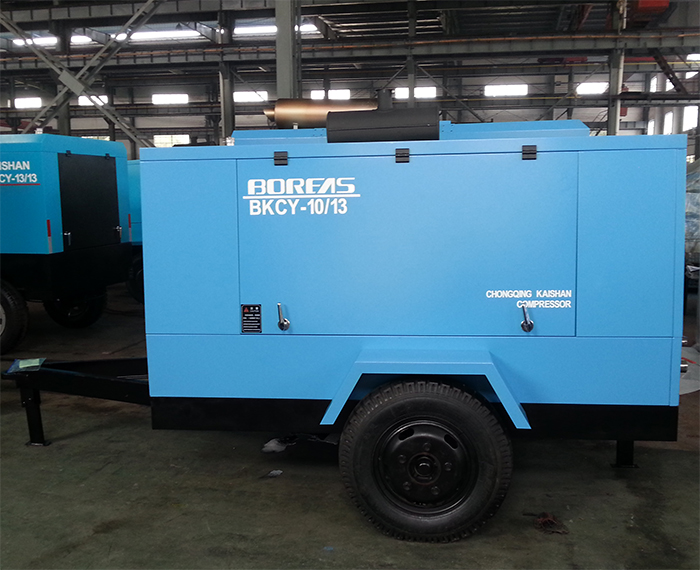

BKCY-10/13

10

13

YC6B150Z-K20

2750

3050×1520×2350

BKCY-12/10

12

1.0

BKCY-13/14.5

13

1.45

6BT5.9-C180
YCA190Z-T10

2750

3450×1520×2220

BKCY-15/13

15

1.3

6BT5.9-C180
YCA190Z-T10

2800

3900×1920×1700

BKCY-17/17

17

1.7

6CTA8.3-C260 3000 3000×1800×2450

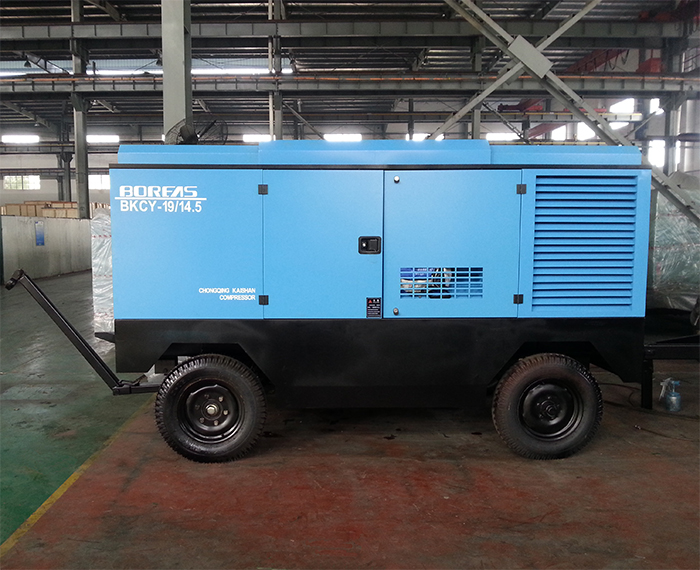

BKCY-19/14.5

19

14.5

6CTA8.3-C260

3400

3980×1800×2450

BKCG-23/22

23

2.2

YC6M340L-K20

4500

4000×2000×2150

BKCY-23/22 5300 4000×2000×2600
BKCG-27/22G

27

2.2

YC6M400L-K20 4850

4000×1950×2030

BKCY-27/22 5650 4000×1950×2450
